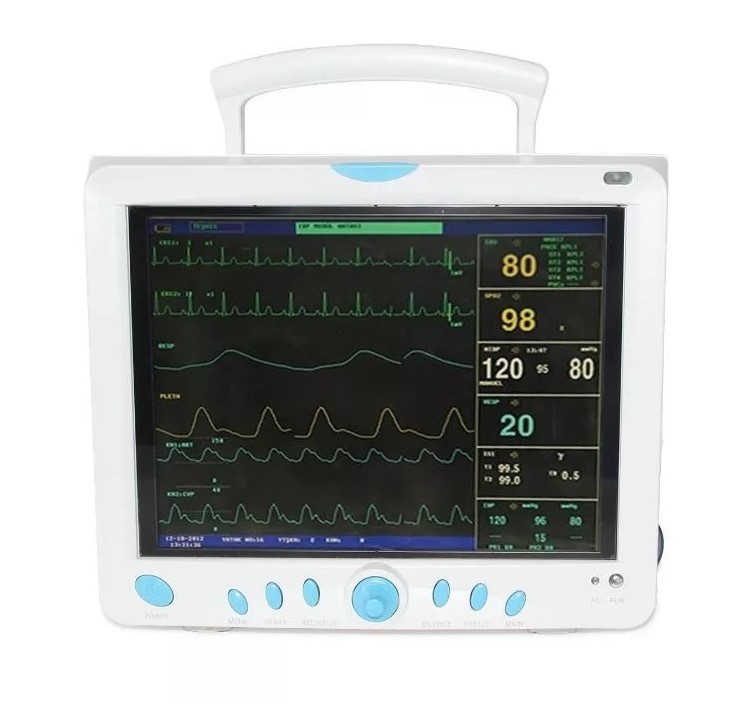

• 12.1” TFT color LCD, 15-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).
• Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
• All-round monitor for adult, pediatric and neonate.
• With standard interface, OxyCRG, trend chard, big character interface, convenient to observe.
• Display up to 8-channel waveform on one screen.
• Display 7-lead ECG waveform on one screen, and with ECG step function.
• Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
• HRV analysis function.
• NIBP measurement mode: Manual/AUTO/Continuous, storage for 4800-group NIBP data.
• Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
• Drug concentration calculation and titration table functions.
• Print trend table data with one-key.
• Connect to Central Monitoring System by 3G, WiFi or wired mode.
• AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
• Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).

Performance

ECG

• Lead mode: 3-lead or 5-lead
• Lead selection: I, II, III, aVR, aVL, aVF, V
• Waveform: 5-lead, 2-channel
• 3-lead, 1-channel
• Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
• Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s

HR:

• Measurement and alarm range: 15~350bpm
• Accuracy: ±1% or ±1bpm, whichever is greater
• Alarm accuracy: ± 2 bpm
• Resolution: 1 bpm

ST-segment monitoring:

• Measurement and alarm range: -2.0mV~+2.0mV
• Accuracy: -0.8mv~+0.8mv ±0.04mv or ±10%, whichever is greater
• Other range: unspecified
• Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
• Pacemaker: yes

RESPIRATION

• Method: R-F(RA-LL) Impedance

Respiration rate:

• Measurement and alarm range: 0~150rpm
• Resolution: 1 rpm
• Measurement accuracy: ±2 rpm
• Alarm accuracy: ±3 rpm
• Apnea alarm: 10~40s
• Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s

NIBP

• Method: Oscillometry
• Mode: Manual/AUTO/Continuous
• Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
• Measurement period in Continuous mode: 5 minutes
• Measurement and alarm range: 10 ~ 270 mmHg
• Resolution: 1 mmHg
• Cuff pressure accuracy: ±3 mmHg

Measurement accuracy:

• Maximal mean deviation: ±5 mmHg
• Maximal standard deviation: 8mmHg

  Over-pressure protection:

• Adult mode: 297±3 mmHg
• Pediatric mode: 240±3 mmHg
• Neonatal mode: 147±3 mmHg

SpO2

• Measurement and alarm range: 0 ~ 100%
• Resolution: 1%
• Measurement accuracy: 70%~100%: ±2%;
• 0%~69%: unspecified

PR

• Measurement and alarm range: 30 ~ 250 bpm
• Measurement accuracy: ±2 bpm or ±2%, whichever is greater

TEMP

• Channel: dual-channel
• Measurement and alarm range: 0 ~ 50℃
• Resolution: 0.1 ℃
• Accuracy: ±0.1 ℃

EtCO2

• Method: Sidestream or Mainstream
• Measurement range for CO2: 0~150mmHg

Resolution for CO2:

• 0 ~ 69 mmHg: 0.1 mmHg
• 70 ~ 150 mmHg: 0.25 mmHg

Accuracy for CO2:

• 0 ~ 40 mmHg: ±2 mmHg
• 41 ~ 70 mmHg: ±5%
• 71 ~ 100 mmHg: ±8%
• 101 ~ 150 mmHg: ±10%
• AwRR range: 2~150 rpm
• AwRR accuracy: ±1 rpm
• Apnea alarm: yes

IBP

• Channel: dual-channel
• Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
• Measurement and alarm range: -10~300 mmHg
• Resolution: 1 mmHg
• Accuracy: ±2% or 1mmHg, whichever is greater
• Power supply: AC 100-240V, 50/60Hz
• Safety classification: Class I, type CF defibrillation-proof applied part

Accessories

• Adult fingertip SpO2 probe (5-pin)
• Adult NIBP cuff
• NIBP extension tube
• ECG lead cable
• ECG electrode
• Temperature probe
• Power cord
• User Manual (english only) – on request for other Language

Physical characteristic

• Dimension: 319 mm(L) × 161 mm(W) × 269 mm(H)
• Weight: 3.6 Kg
