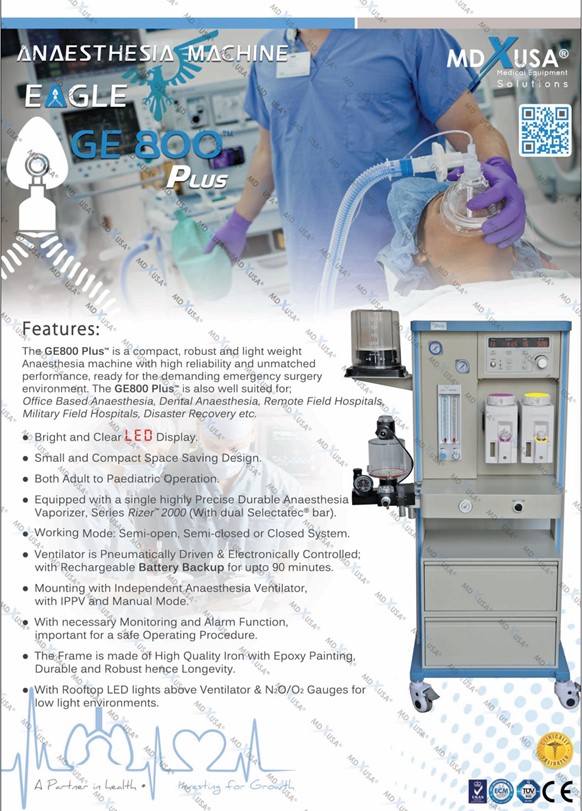

ANAESTHESIA MACHINE (MDXUSA) EAGLE 800 GE PLUS

Special Feature
 Application: Adult, Pediatric
 Driven mode: Pneumatically driven electronically
controlled
 Mode: Semi-open, Semi-closed or closed system
 Anesthetic vaporizer: One vaporizer (optional two)

Anesthesia Ventilator (with Battery Backup)
 Display: High light LED display
 Ventilation Volume: 50~1600ml
 Breath frequency: 1~90BPM
 I:E ratio: 4:1 ~ 1:6 Monitor parameter: Tidal volume, breath frequency, MV
Alarm: MV high alarm, MV low alarm, TV high alarm, TV low alarm

Description:

Main Unit
 Circle absorber: Compact circle absorber
 Bellow: 0 ~ 1600ml
 Oxygen FLUSH: 25L/min ~ 75L/min
 Flow meter:
O2, N2O two-tube flowmeter
O2 tube: 0L/min ~ 10L/min
N2O tube: 0L/min ~ 10L/min
O2 and N2O linkage device Adjust O2 and N2O in proportion ( keep O2 concentration not lower than 25% )
 Gas source pressure
O2: 0.25 ~ 0.65Mpa
N2O: 0.25~ 0.65Mpa
 Gauge: 2 units, one N2O, one O2

MDX_Instruments®_Anaesthesia_ machine_ GE800Plus™
