CTG Machine with Dual Probe Model: L8N Luckcome (China)
Original price was: ₨195,000.00.₨180,000.00Current price is: ₨180,000.00.

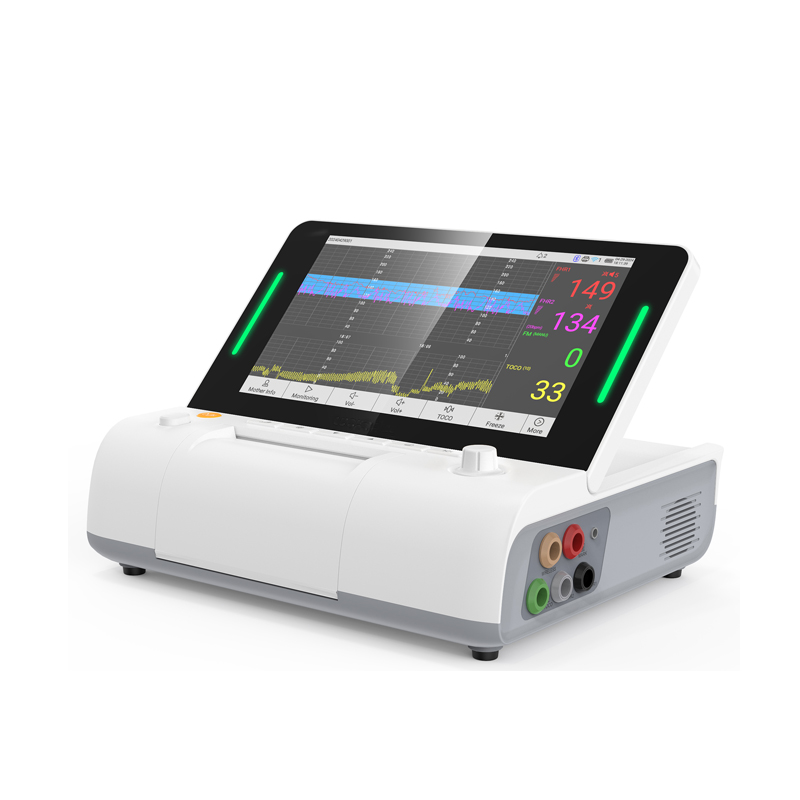

L8N LED Fetal Maternal Monitor – CTG Machine
Fetal Monitor L8N LED + LCD is an innovative solution designed at a low cost to make routine fetal monitoring simple and effective. This device has been designed to provide maximum comfort and ease of use for both the physician and patient. It is ideal for use in all conditions, both at home and in the maternity ward.
- Key Features: It includes a super-sensitive probe, automatic fetal movement detection, and a CTG scoring system.
- Specifications: The device operates at a FHR frequency of 1.0 MHz and features a 110mm built-in printer.
- Options: Optional features include twin fetal heart rate (FHR) measurement and maternal parameters such as SPO2, PR, and NIBP.

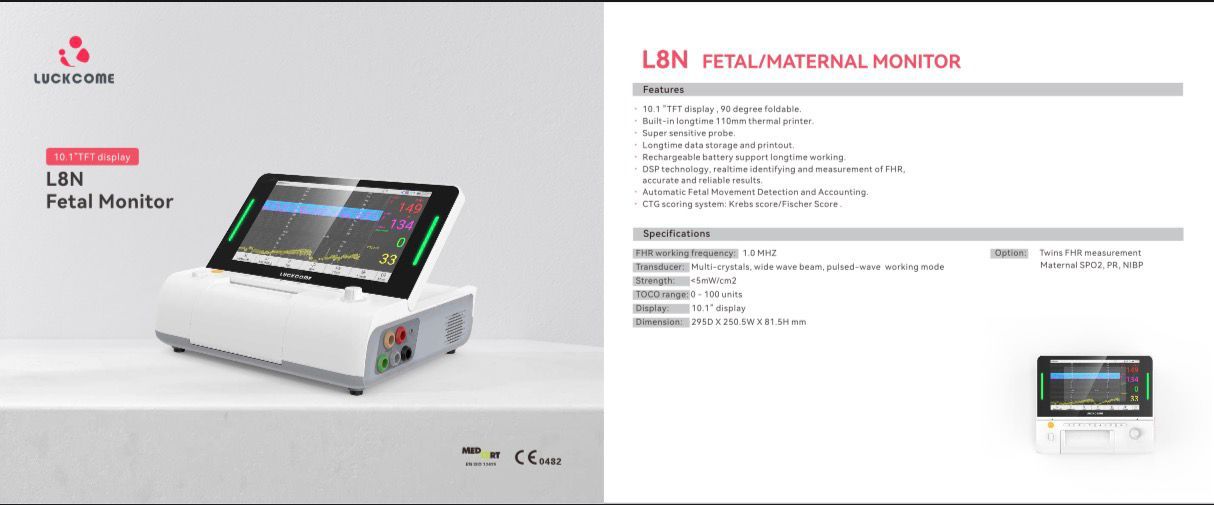

Specifications
-FHR working frequency: 1.0 MHZ
-Transducer: Multi-crystals, wide wave beam, pulsed-wave working mode
-Strength: <5mW/cm2
-TOCO range: 0-100 units
-Display: 10″ display
-Dimension:295D X 250.5W X 81.5H mm
-Option: Twins FHR measurement, Maternal SPO2. PR, NIBP
Technical Specification
Fetal Heart Rate (FHR)
Parameters: FHR1, FHR2 (optional)
Measurement range: 50 – 240 bpm
Accuracy: ±2 bpm;
Sweep speed: X1, X2, X4, X8
Transducer
9 crystals, pulsed Doppler, high sensitivity
Frequency: 1.0MHz
Probe: wired
Uterine Activity (TOCO)
Measurement range: 0 – 100
TOCO baseline: 0, 5, 10, 15, 20 (selectable)
Weight & Dimensions
Net Weight: 1.75kg
Dimensions: 295(D)*240(W)*75(H) mm
Standard Accessories
FHR.TOCO, FM Transducer
2 pcs of printer paper.
One power cable
Two bandages /three bandage (twin optional)
Second one transducer(optional)
Remark
3 Para (fetal monitor): FHR, TOCO, FM
6 Para (fetal/maternal monitor): FHR, TOCO, FM, MHR, SPO2, NIBP
Options
Twins Probe, Fetus Waker, Touch Screen, Trolley, Wall Bracket
