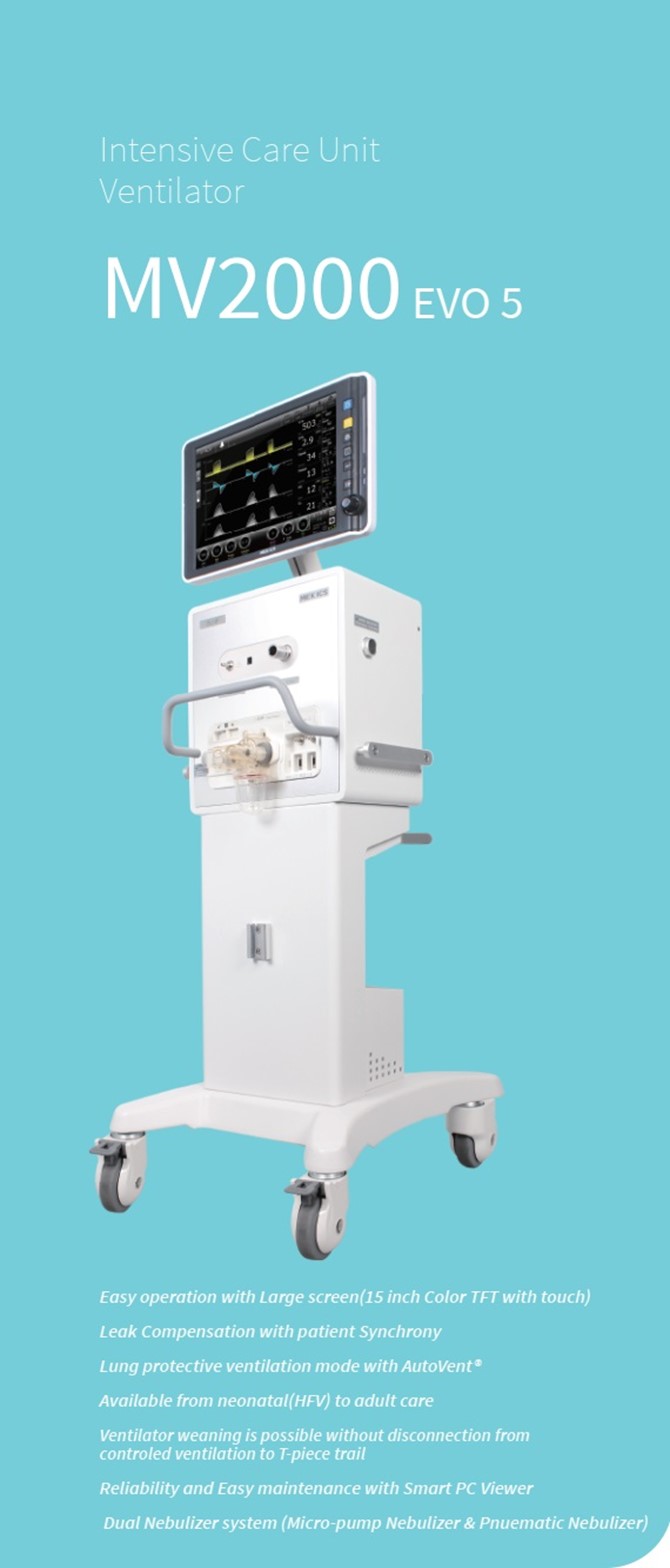

MEK Ventilator MV2000 EVO5

• High Frequency (Option)

• 15″ touch screen

• Adults, Pediatrics and Neonates

• Auto Vent Mode

• TIDAL VOLUME ( 2 : 2500 ML )

• 16 ventilation modes

• Battery

• Made in Korea

Technical Specifications :

MEK MV2000 EVO5 Korean Ventilator For ICU, NICU and Picu :

* Microprocessor controlled Ventilator.
* Suitable for Neonates, Pediatrics and adults.
* Invasive and Non-invasive Application.
* 15” high definition TFT touch screen LCD monitor.
* 3D graphics.
* More options in suction (close and open) loop suctions.
* Simultaneous display of 5 waveforms and loops.
* Graphical and tabular trends up to 72 hours.
* Battery back-up 3 Hours.
* 100% O2
* Manual breaths

Operational Modes :-

PACV, PSIMV, VACV, VSIMV,
SPONT, PSV, NIV, Apnea backup, CPAP, PEEP, Bi-level CPAP, (TCPL).

 Advanced Mode :-

Auto Vent, PRVC, TBI Level, O2 stream.
* Tidal Volume: 2 – 2500 mL.
* Respiration Rate: 2 – 150 BPM.
* PEEP / CPAP: 0 – 45 cmH2O.

Trigger Sensitivity :-

– Pressure: 0.1 – 20 cmH2O.
– Flow: 0.1 – 20 LPM.

-Nebulizer: 10- 180 min. or automatic.

Alarms :-

– High and low tidal volume.
– High and low minute volume.
– High and low respiration rate.
– High and low Peak airway pressure.
– High and low O2%.
– Airway Leak.
– Apnea.
-Optional: Air compressor.

High frequency modes :

• Two modes for high frequency oscillation type:(SHFV&DHFV)

• With :

• Freq. 2~20 hz(120~1200 bpm )

• Power (amplitude ) 1~100%

• Map 5~60 cmh2o
