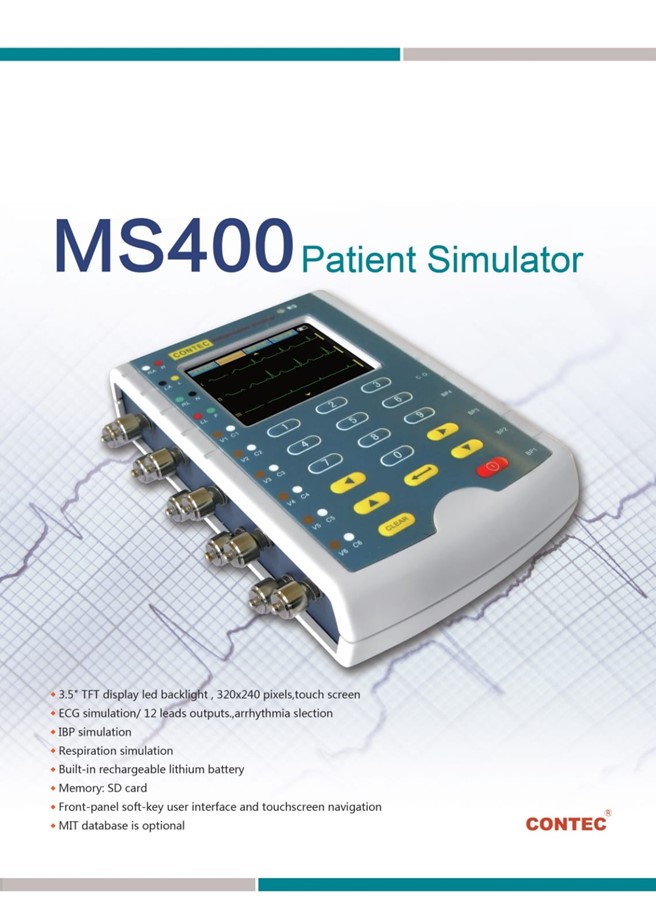

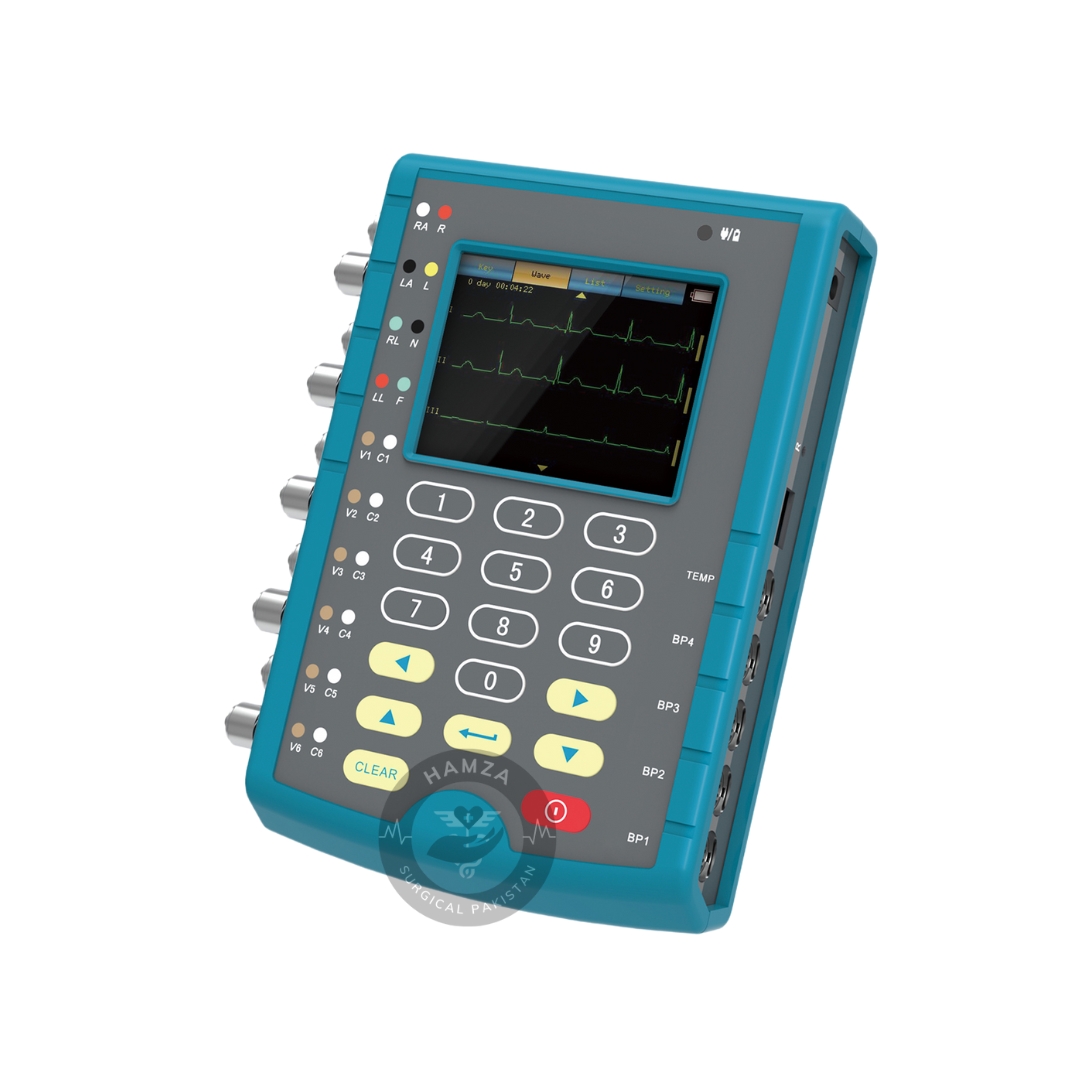

CONTEC MS400 Multiparameter Simulator

Introduction

MS400 Multi-parameter Simulator is a portable device, features in small volume and light weight. It can simulate accurately 12-lead ECG, Respiration, Temperature, 2-channel IBP or 4-channel IBP. And it can be tested in where the monitor is used.

Functions

• Simulate 35 kinds of arrhythmia (including Atrial, Ventricular, Premature Beat and Conduction Defects) and pacemaker waveform (including Asynchronous, Demand Occ Sinus, Demand Freq Sinus, A/V Sequential, Non Capture, Non Function).
• Simulate four-channel IBP data.
• Simulate respiration signal with adjustable respiration rate, impedance and baseline impedance, and three kinds of apnea data.
• Simulate four kinds of temperature data.
• Simulate square wave, triangle wave, pulse wave and sine wave with adjustable frequency.
• Simulate standard ECG calibration, adult and pediatric ECG signal.
• ECG waveform complied with the standard of ANSI/AAMI EC13-2002, AHA, MIT ECG database, other ECG database and user-defined waveform data stored in TF card can be displayed by the simulator and exported to the equipment to be tested.
• Each waveform can be displayed by sliding the 3.5” TFT touch screen, easy to operate.
• Power supply: rechargeable lithium battery or linear adapter, which reduces interference.
• Optional operation modes: keys and touch screen.
